2010 YAMAHA JUPITER Z - REDGAMBAR DETAIL DAN SPESIFIKASI HARGA YAMAHA JUPITER Z
Chassis
Frame Type: Pipe "Under-Bone"
Suspension Front: Telescopic
Rear Suspension: Swing Arm
Brakes Front: Single 220 mm Disc
Rear brakes: Tromol with Material "Non Asbestos" O 130 mm
Tires Front: 70/90 - 17.38 P (with tires)
Rear tire: 80/90 - 17.44 P (with tires)
Electricity
Front Lamp: 12 Volt, 32 W / 32 W (2 pcs)
Sein Home Lighting: 12 Volt, 10 W x 2 pieces
Sein Rear Lamp: 12 Volt, 10 W x 2 pieces
Brake Lights: 12 Volt, 5 W / 21 W x 1 pc
Beterai: GM5Z - 3B / YB 5L-B 12 Volt 5.0 Ah
Sparkplug: C6-HSA NGK / DENSO U-20 FS-U
Ignition system: DC CDI
Frame Type: Pipe "Under-Bone"
Suspension Front: Telescopic
Rear Suspension: Swing Arm
Brakes Front: Single 220 mm Disc
Rear brakes: Tromol with Material "Non Asbestos" O 130 mm
Tires Front: 70/90 - 17.38 P (with tires)
Rear tire: 80/90 - 17.44 P (with tires)
Electricity
Front Lamp: 12 Volt, 32 W / 32 W (2 pcs)
Sein Home Lighting: 12 Volt, 10 W x 2 pieces
Sein Rear Lamp: 12 Volt, 10 W x 2 pieces
Brake Lights: 12 Volt, 5 W / 21 W x 1 pc
Beterai: GM5Z - 3B / YB 5L-B 12 Volt 5.0 Ah
Sparkplug: C6-HSA NGK / DENSO U-20 FS-U
Ignition system: DC CDI

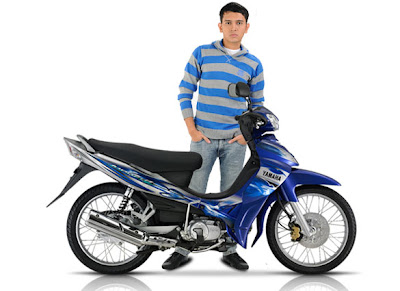

2010 YAMAHA JUPITER Z - BLUEGAMBAR DETAIL DAN SPESIFIKASI HARGA YAMAHA JUPITER Z
Dimension
Length x Width x Height: 1910 x 680 x 1045 mm
Seat Height: 760 mm
Distance Between Wheels: 1230 mm
Distance to Land: 140 mm
Tank Capacity: 4.2 Liter
Fill Weight:
Empty Weight: 98 kg
2010 YAMAHA JUPITER Z - BLACKGAMBAR DETAIL DAN SPESIFIKASI HARGA YAMAHA JUPITER Z
2010 YAMAHA JUPITER Z - Specifications :
Machine
Engine Type: 2P2, 4 Step, SOHC, 2 Valves (Air Cooled)
Step diameter: 51.0 x 54.0 mm
Cylinder Volume: 110.3 cc
The composition of Cylinders:
Comparison of Compression: 9.3: 1
Max Power: 8.8 hp / 8.000 rpm
Max torque: kgf.m 0.92 / 5.000 rpm
Lubrication System: Wet Lubrication
Oli Engine: 800cc (Periodic) | 1.000 cc (Total)
Radiator:
Carburetor: Mikuni VM 17 x 1, Pilot Screw setting 1 to 3.8 Round Exit
Slow rotation: 1500 rpm
Air Filter: Dry Type
Transmission: 4 speed rotary type (N-1-2-3-4-N)
Clutch:
Caster / Trail:
Dental Ratio:
Starter System: Motor Starter and Starter cranks
Price : Rp. 13.260.000,-
Harga On The Road untuk wilayah Jakarta dan sekitarnya.
Machine
Engine Type: 2P2, 4 Step, SOHC, 2 Valves (Air Cooled)
Step diameter: 51.0 x 54.0 mm
Cylinder Volume: 110.3 cc
The composition of Cylinders:
Comparison of Compression: 9.3: 1
Max Power: 8.8 hp / 8.000 rpm
Max torque: kgf.m 0.92 / 5.000 rpm
Lubrication System: Wet Lubrication
Oli Engine: 800cc (Periodic) | 1.000 cc (Total)
Radiator:
Carburetor: Mikuni VM 17 x 1, Pilot Screw setting 1 to 3.8 Round Exit
Slow rotation: 1500 rpm
Air Filter: Dry Type
Transmission: 4 speed rotary type (N-1-2-3-4-N)
Clutch:
Caster / Trail:
Dental Ratio:
Starter System: Motor Starter and Starter cranks
Price : Rp. 13.260.000,-
Harga On The Road untuk wilayah Jakarta dan sekitarnya.
